Top-handled, battery-powered chainsaw for professional landscapers and arborists.
For In-Tree Professional Use Only
A member of the AP Battery System, the MSA 161 T is ideal for professional arborists looking for lightweight, quiet performance for in-tree work. Equipped with a commercial-grade, brushless electric motor, this zero-exhaust, top-handled chainsaw delivers ideal speed, cutting capacity, and run times. This chainsaw also features instant-start technology and is easy to use and maneuver, reducing overall user fatigue. The MSA 161 T is also equipped with a 1/4" STIHL PICCO™ saw chain for precise cutting performance—providing clean, smooth cuts—making it ideal for pruning and in-tree maintenance. Experience the benefits of a battery-powered, high-performance chainsaw with the MSA 161 T.
Features:
- Reduced-Emission Engine Technology - Caring for Nature - The STIHL Inc. “Caring for Nature” seal identifies its powered products that are more environmentally conscious, producing zero or low exhaust emissions. STIHL Inc. defines “low exhaust emissions” as being cleaner than EPA and/or CARB exhaust emission standards.

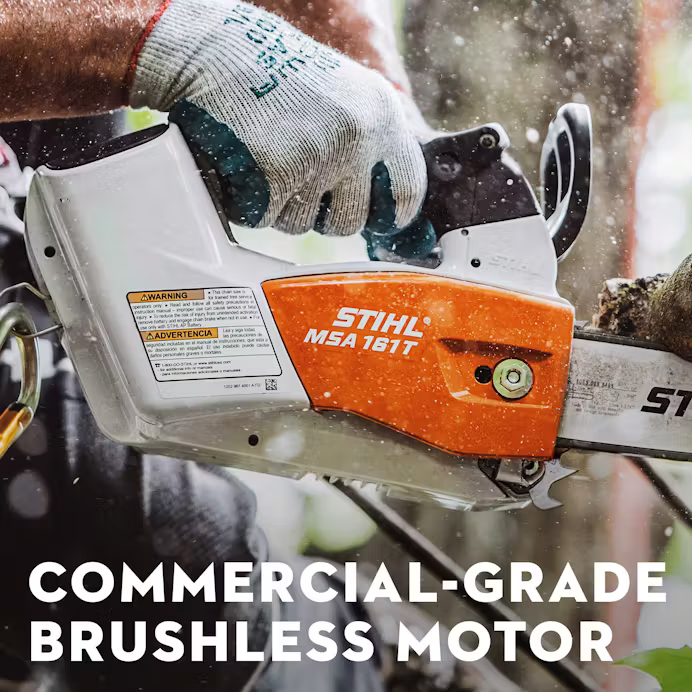

- STIHL Electric Motor - Lightweight and compact, STIHL electric motors require minimal maintenance and feature low noise levels and reduced vibration.
- Lightweight Portability - Great for maneuverability and extended use.
- STIHL Quickstop® Plus - STIHL offers an additional, manually-activated chain brake on select models. This system is designed to engage when the operator’s right hand completely releases the rear handle, stopping the chain within one second.
- STIHL Quickstop® - STIHL chainsaws are equipped with a chain stopping system designed to reduce the risk of injury in certain kickback situations. It is called a STIHL Quickstop® chain brake. The STIHL Quickstop® chain brake is designed to stop the rotation of the chain if activated by the operator’s hand or by inertia if the saw kicks back with sufficient force. In some working positions, the STIHL Quickstop® chain brake can be activated by inertia, stopping the chain within fractions of a second.
- Ematic™ Lubrication System - The Ematic™ guide bar, when used with STIHL OILOMATIC® saw chain, will provide proper lubrication and less oil consumption than conventional methods. The system works because two ramps, strategically placed in the guide bar rail, help contain the flow of oil and direct all lubrication to the sliding faces of the bar and chain links as well as the rivets and driver holes, which in turn can reduce bar oil consumption up to 50%.
Specifications:
| Power Source | Battery |
|
Powerhead Weight |
4.6 lbs. |
| Weight (w/ AP 200) | 7.5 lbs. |
| Guide Bar Length (Recommended) | 12 in. |
| Oilomatic® Chain | 1/4" PM3 |
| Chain Oil Capacity | 3.6 oz. |

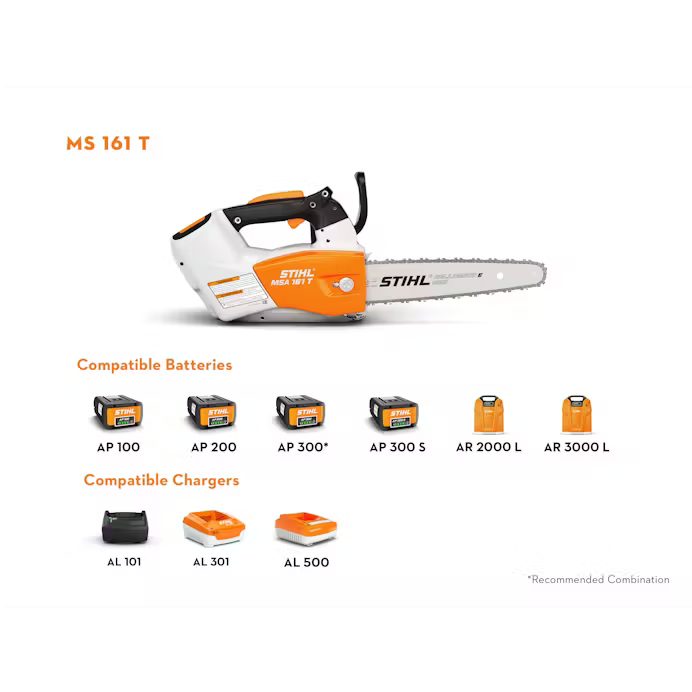

| Battery System | AP System |
| Run Time (w/ AP 200) Up to | 42 min. |
| Voltage | 36 volt |
Note: This product is for professional use only. STIHL recommends #3670 (71 PM3 65) OILOMATIC® saw chain and 12" 3005 008 3405 guide bar combination. Chain saw weights include recommended bar and chain combination. Compatible guide bar ranges: 10" to 12". The battery working time specifications for each battery charge are estimates and may vary depending on how the tool is used and what is being cut.
Warnings and Safety
* The actual listed guide bar length can vary from the effective cutting length based on which powerhead it is installed on.
IMPORTANT SAFETY INFORMATION The occurrence called “kickback” can cause serious or fatal injury. Always read the instruction manual carefully before using your saw. STIHL uses a green and yellow color-coding system to help you select a powerhead, bar and chain combination that complies with the kickback requirements of ANSI Standard B175.1 (gasoline-powered saws) and §30 of UL 1662/ ANSI Standard B175.1 (electric chainsaws). Ask your STIHL dealer about safe operating procedures and the advantages of the STIHL Quickstop® chain brake, STIHL Quickstop® Plus additional chain braking feature, STIHL reduced kickback bars and STIHL low-kickback saw chains.
STIHL recommends the use of green reduced kickback bars and green low kickback chains on all STIHL chainsaws.
STIHL recommends the use of green reduced kickback bars and green low kickback chains on all STIHL chainsaws.
WARNING FOR CORDED ELECTRIC AND BATTERY CHAINSAW USERS! The fibers may not stop the sprocket on most corded electric chainsaws and some battery-powered chainsaws because of the constant high torque. However, to reduce the severity of injury from accidental contact with the chain, STIHL recommends that leg protection be worn when operating these types of chainsaws.
WARNING! Improper use of any power tool may cause serious or fatal injury. Read, understand, and follow carefully the operating and safety instructions in your instruction manual before using such products.
If you have any questions, give us a call during business hours and one of our friendly associates will be happy to assist you. 410-692-5170
