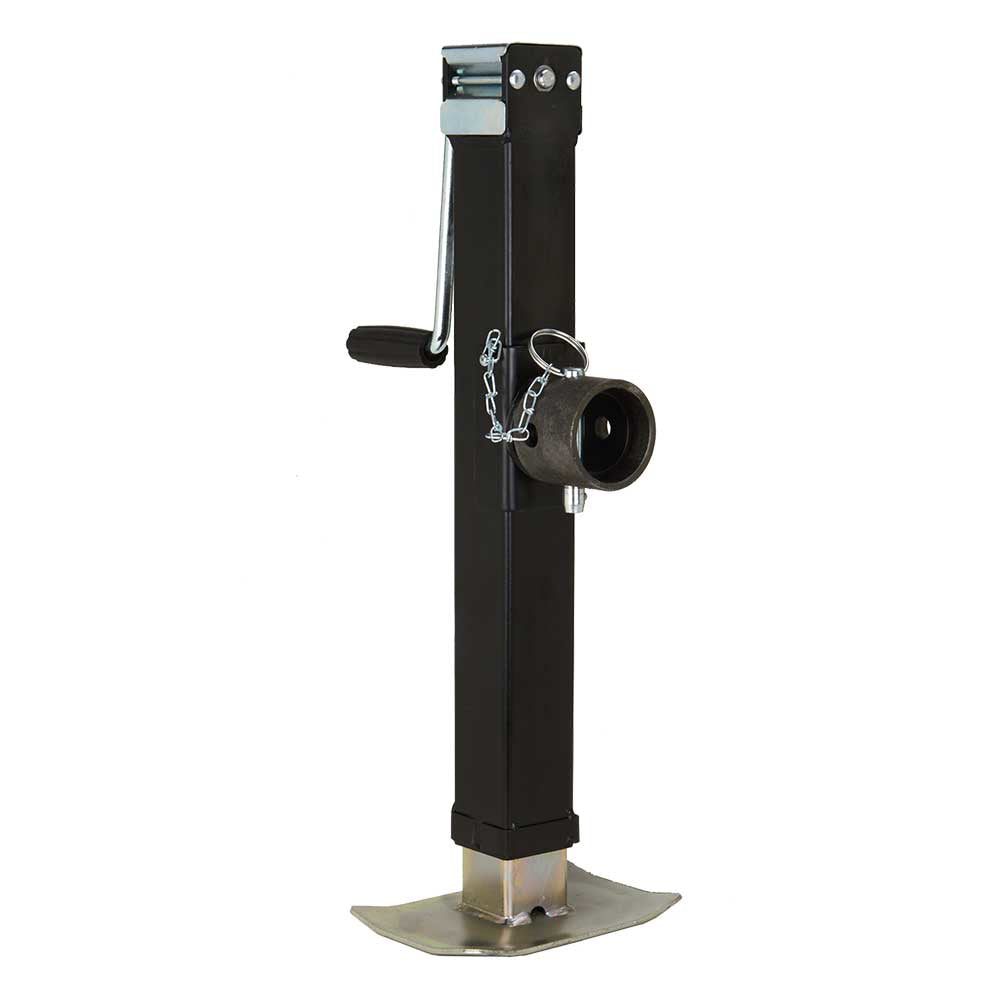

(44076.ULT) Ultra-Tow Sidewind Square Tube-Mount Jack | 5000-Lb. Lift Cap
This top-quality Ultra-Tow® Sidewind Square Tube-Mount Jack has a weld-on style mount that includes a 2 1/2in. male mating pipe/tube and a pin and lanyard assembly. 15 1/4in. retracted length; 30 1/4in. extended length.

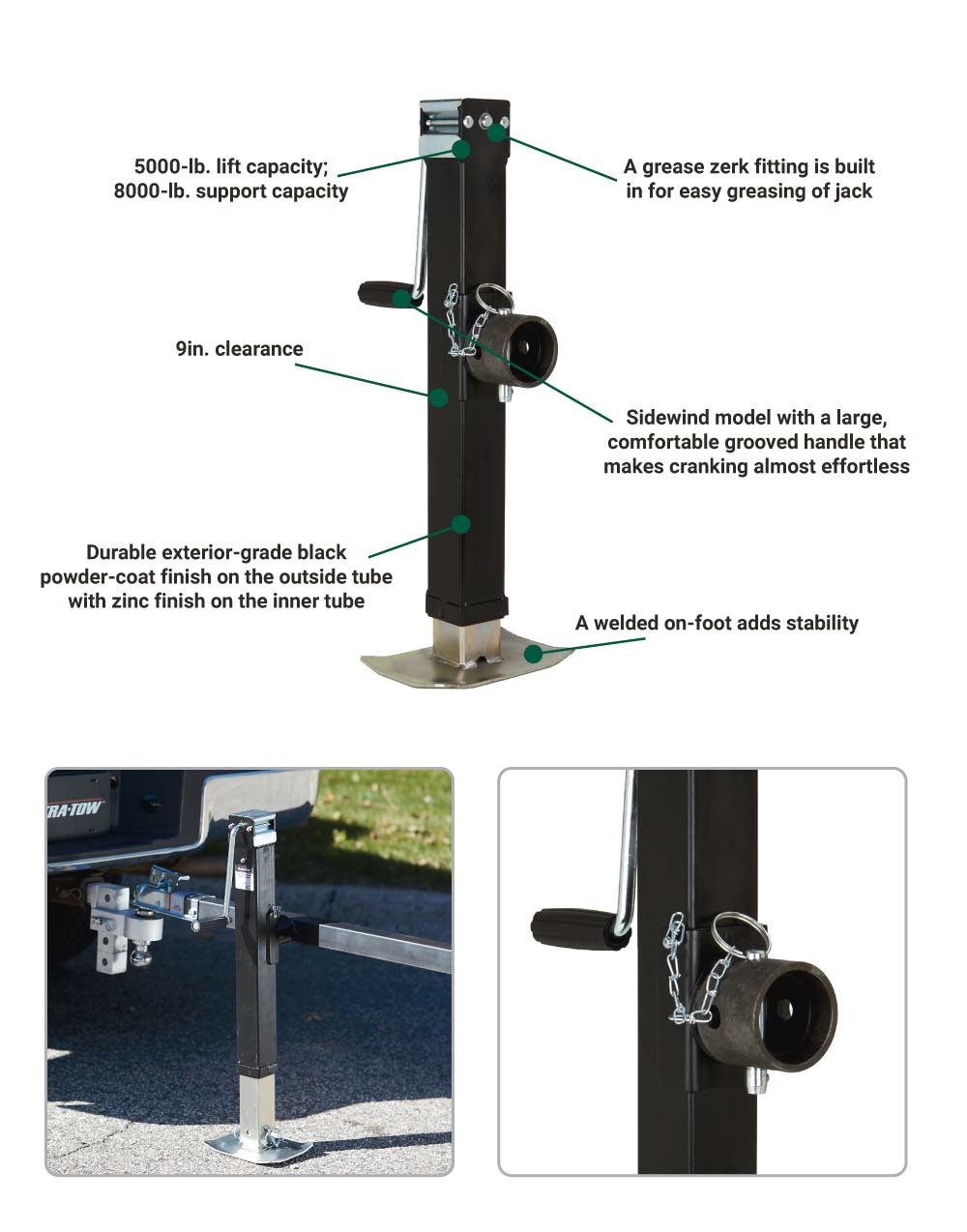

Features
- Includes: (1) Square tube-mount jack
- Durable exterior-grade black powder-coat finish on the outside tube with zinc finish on the inner tube
- Sidewind model with a large, comfortable grooved handle that makes cranking almost effortless
- A grease zerk fitting is built in for easy greasing of the jack
- 5,000-lb. lift capacity; 8,000-lb. support capacity
- 9 in. clearance
- A welded-on foot adds stability
Specifications
Equipment Type |
Tube-mount Trailer Jack |
Clearing Height | 9 In. To Jack Top |
Dry Weight | 25 Lbs |
Ground Support | Foot Pad |
Jack Type | Square Tube (sidewind Crank) |
Length | 15 In. Travel; 15-1/4 In. Retracted; 30-1/4 In. Extended |
Lift Range | 5,000 Lbs |
Mounting | Weld-on Tube Mount |
Support Capacity | 8,000 Lbs |
