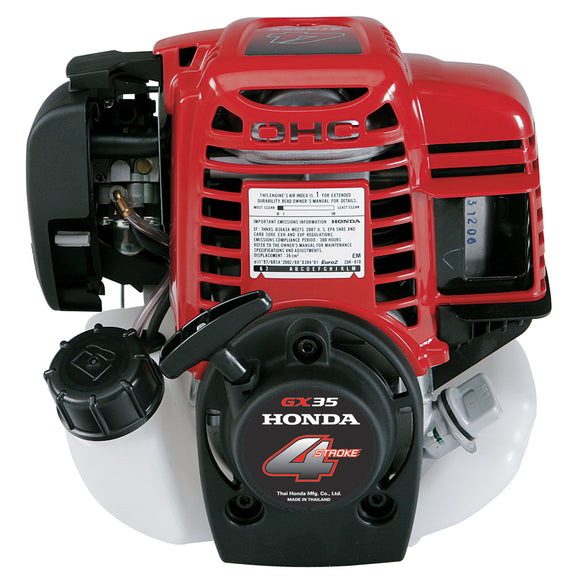

    (GX35) Honda Mini 4-Stroke OHC Vertical Engine-35.8cc

    (GX35) Honda Mini 4-Stroke OHC Vertical Engine-35.8cc

    Maxim

    Meet the world's lightest OHC engine.

    Honda applied our superior engine technology to create the world’s first 360° inclinable 4-Stroke engines. The ultra-lightweight GX35 Mini 4-Stroke efficiently delivers the kind of efficient cleaner, powerful, quiet performance that you’d expect from a larger engine – but in a very compact package.



    FEATURES

    Advanced Technology

    • 4-stroke - no fuel / oil mixing
    • Full 360º "any-side-up" operation - use and store in any position
    • Exclusive rotary-slinger lubrication system
    • The world's lightest OHC engine

    Fuel Efficient, High Output Operation

    • Approximately half the operating cost of comparable 2-stroke engines
    • Efficient port configuration and large diameter valves maximize power output
    • Lighter, more rigid valve train
    • Carburetor equipped with accelerator pump for fast, easy acceleration

    Smooth Performance

    • Precision engineered components result in lower vibration
    • Lighter piston minimizes vibration
    • Ball bearing supported crankshaft for greater stability
    • Roller bearing supported connecting rod

    Exceptionally Quiet

    • Belt-driven OHC design reduces mechanical noise
    • Large capacity, multi-chamber exhaust system
    • Sophisticated air intake system

    Proven Reliability

    • High quality materials, fit, and finish
    • Lifetime timing belt design
    • Integrated fuel system protection
    • Diaphragm carburetor

    Easy to Use and Maintain

    • Easily accessible spark plug
    • Easy to drain and re-fill oil
    • No mixing of gas or oil

    Easy Starting

    • Exhaust decompression system
    • Unique low inertia design

    Emissions Compliant

    • CARB and EPA certified
    • No catalyst necessary



    SPECIFICATIONS

    Engine Type Air-cooled 4-stroke OHC
    Bore x Stroke 39 mm x 30 mm
    Displacement 35.8 cm3
    Net Power Output 1.3 HP (1.0 kW) @ 7,000 rpm
    Net Torque 1.2 lb-ft (1.6 Nm) @ 5,500 rpm
    PTO Shaft Rotation Counterclockwise (from PTO shaft side)
    Compression Ratio 8.0:1
    Carburetor Diaphragm-type (overflow return)
    Ignition System Transistorized magneto
    Starting System Recoil
    Lubrication System Crankcase pressure-driven
    Governor System NA
    Air Cleaner Semi-dry
    Oil Capacity 3.4 US oz (100cc)
    Fuel Tank Capacity 0.67 U.S. qt (.63 liters)
    Fuel Unleaded 86 octane or higher
    Dry Weight 7.6 lb (3.3 kg)
    Dimensions 8.0"L x 9.2"W x 9.4"H



    IF YOU HAVE ANY QUESTIONS FEEL FREE TO CALL 410-692-5170
