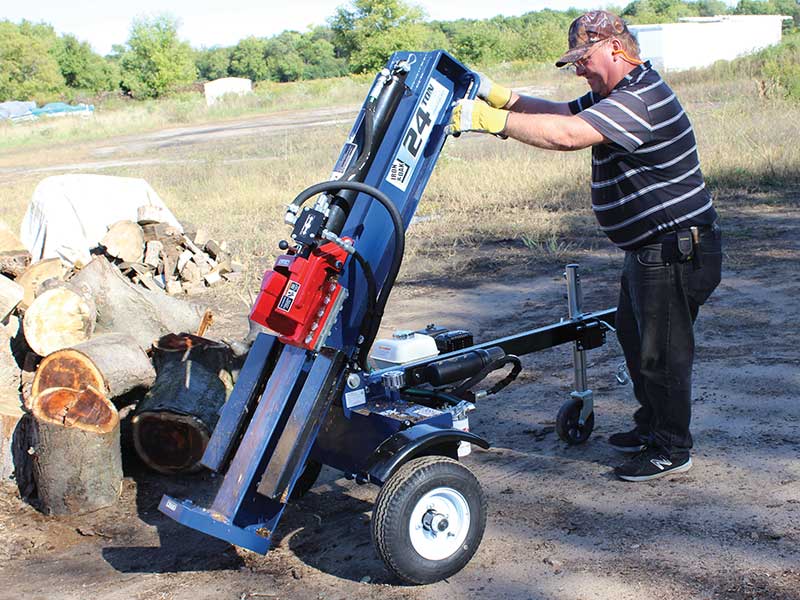

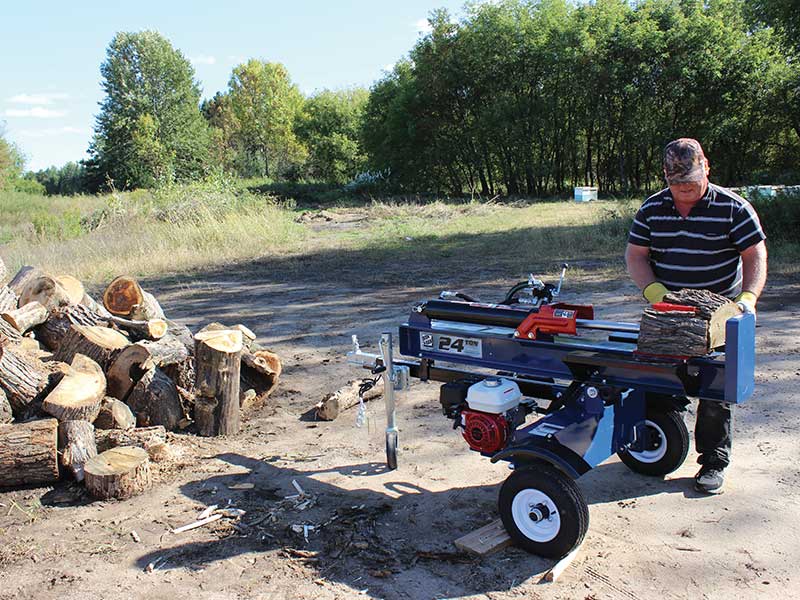

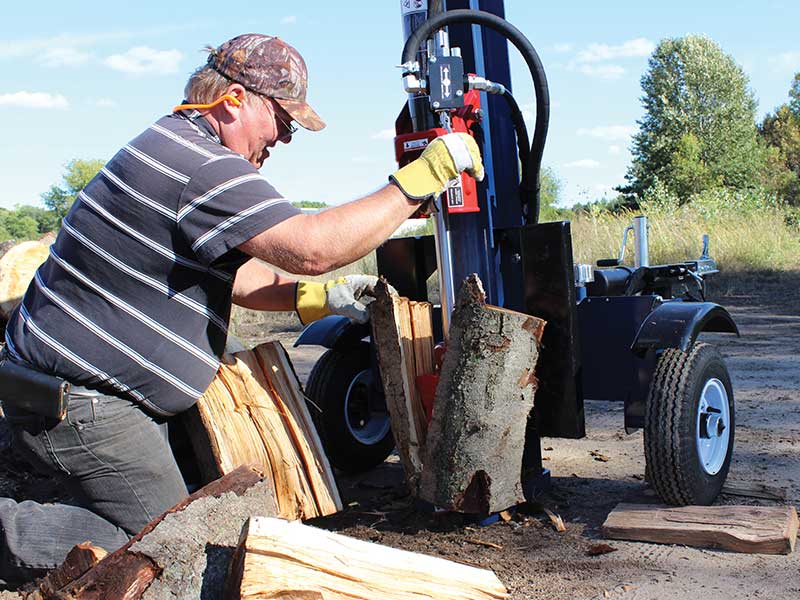

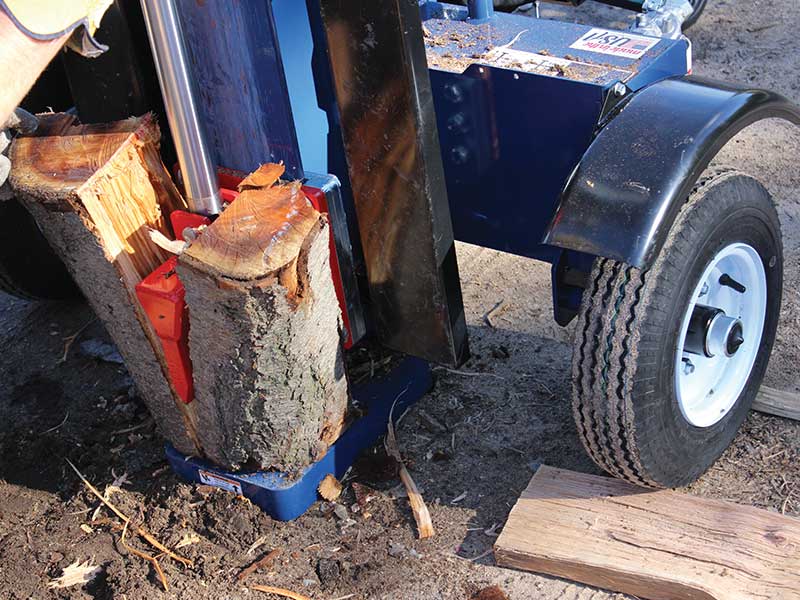

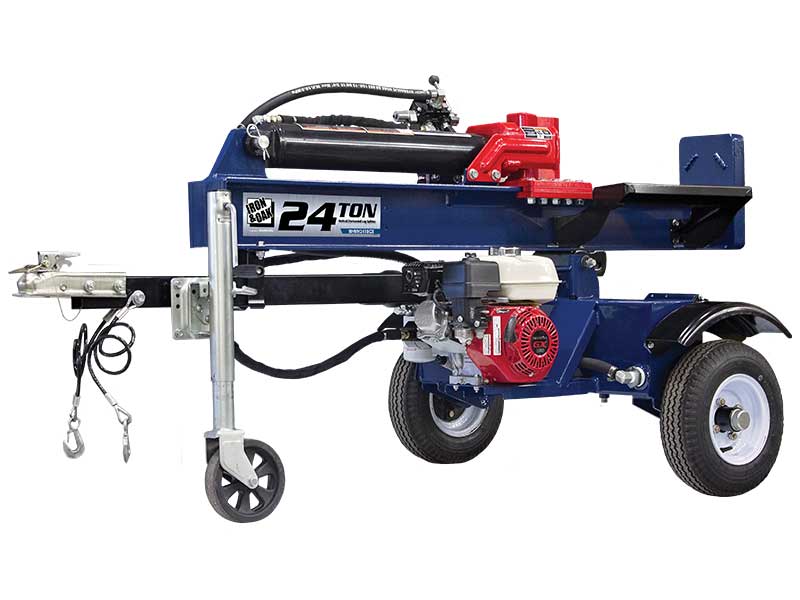

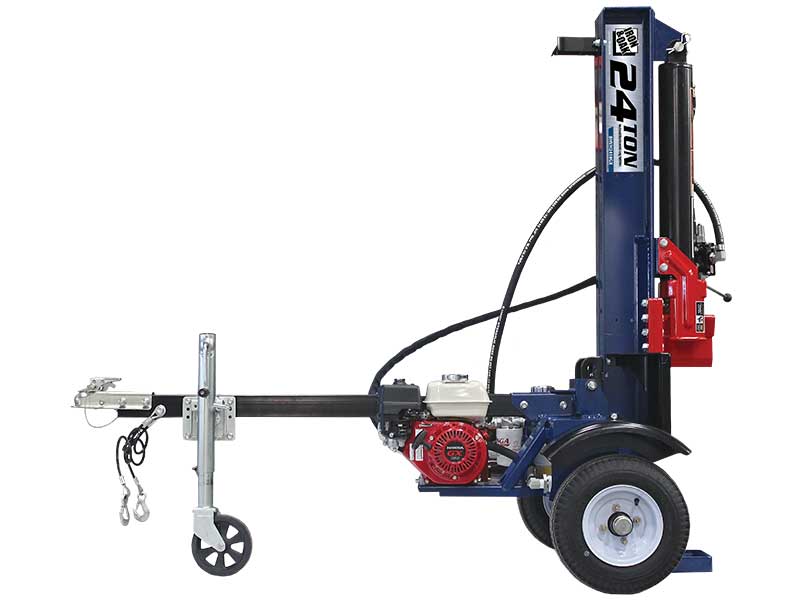

Iron & Oak 24 Ton Vertical / Horizontal Log Splitter (BHVH2418GX)
Free Shipping!This unit qualifies for free shipping anywhere in the continental United States. |
Warranty
|
Literature |
Features
- Auto latch system for safe towing
- Service friendly design for checking hydraulic fluid

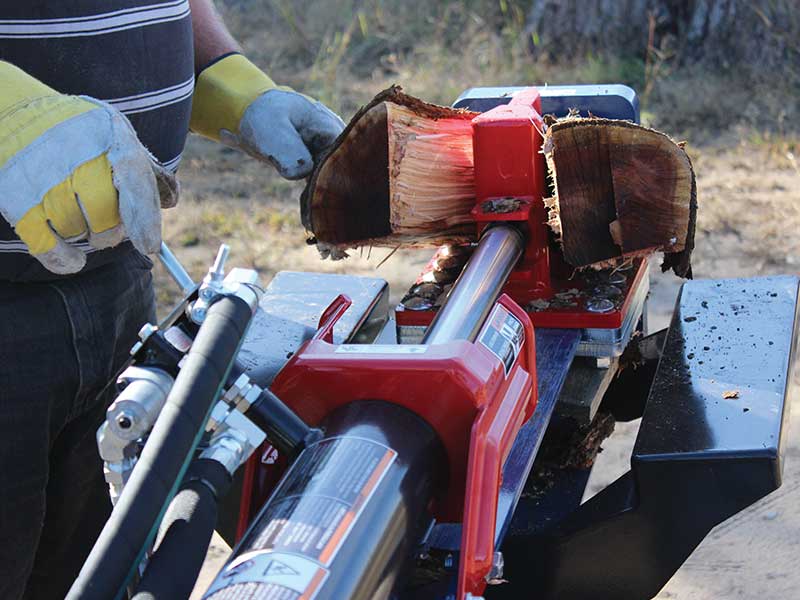

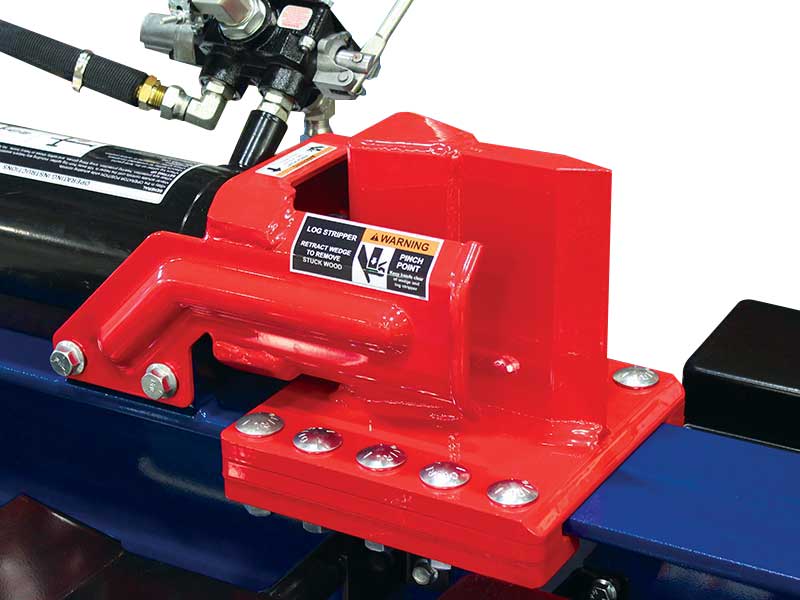

- Heavy-duty wedge features five bolts per side

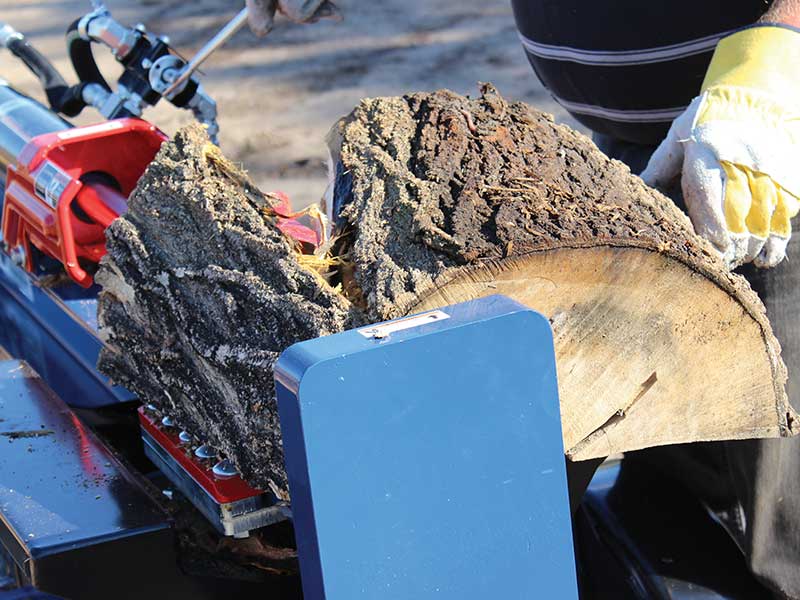

- Heavy-duty log cradle, fenders and engine mount
- 4-stage hydraulic filtration system
- Heavy-duty crank down wheel jack for easy moving
- Halite commercial cylinder seals for consistent pressure
- Long lasting powder coat finish

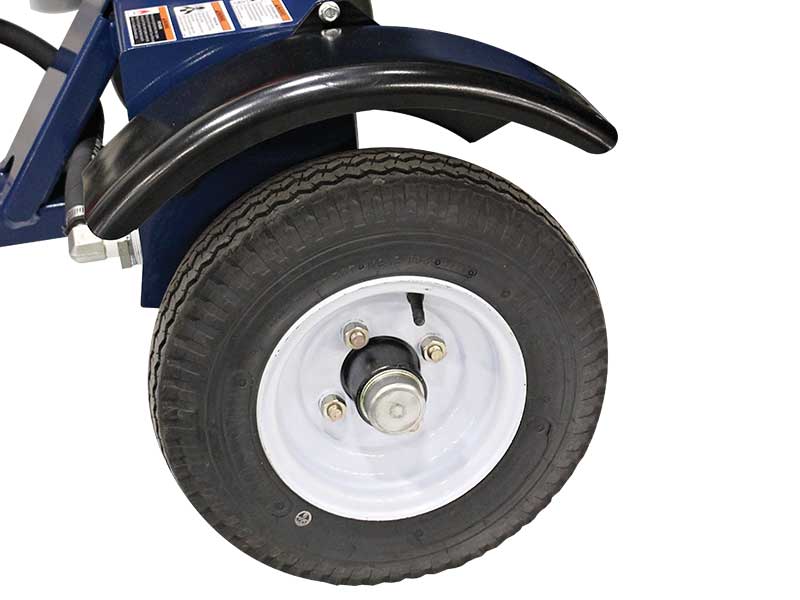

- Heavy-duty 4 bolt trailer hubs for towing
- Offset valve for better operator positions
- Tow cables included
- 2" hitch coupler
- Heavy-duty 2 x 3 box tube tongue
Specifications
| Cylinder | 4" X 24" clevis type, 1.75" rod |
| Valve | 3 position with auto return |
| Pump | 11 GPM HI-LO 2 Stage |
| Hydraulic Tank | 9.0 Gallons System Total |
| Hydraulic Capacity | 10.0 Gallons System Total |
| Engine | Honda GX160 |
| Displacement | 163cc |
| Bed Height | 32" |
| Beam | 6" Heavy-Duty Formed Steel |
| Tires | 4.8" x 8.0" Highway Rated |
| Log Opening | 25" |
| Cycle Time | Approx. 13 Seconds Complete Cycle |
| Splitting Force | Approx. 24 tons |
| Weight | 675 lbs |
LIFT GATE DELIVERYThis item will ship via truck freight. The driver will not be responsible for helping you unload the freight. If you do not have a means to unload a heavy crate from the back of a tractor trailer (loader, fork lift, etc), please choose the lift gate delivery option above. |
Some Assembly Required.
