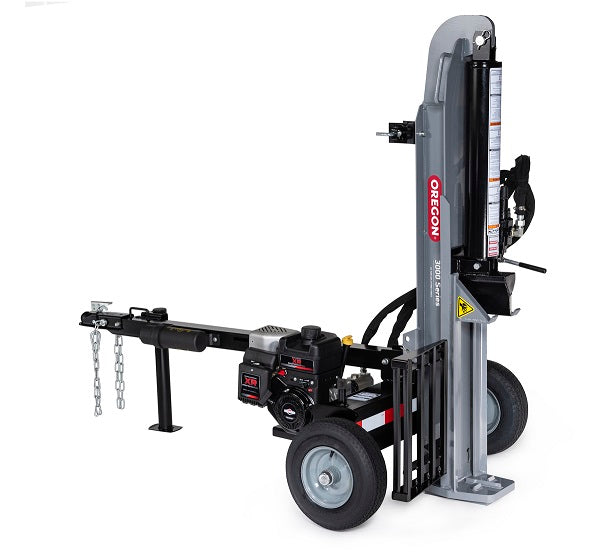

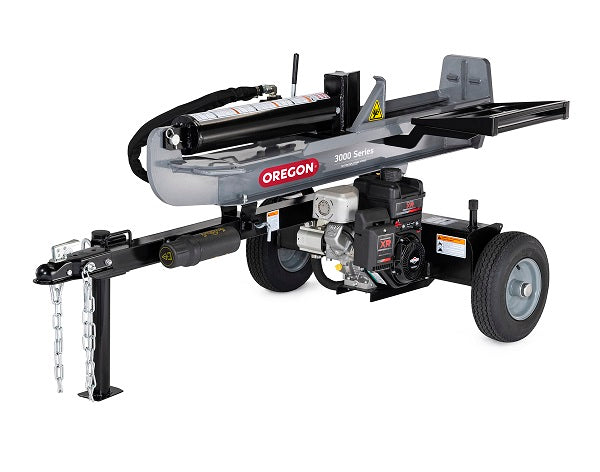

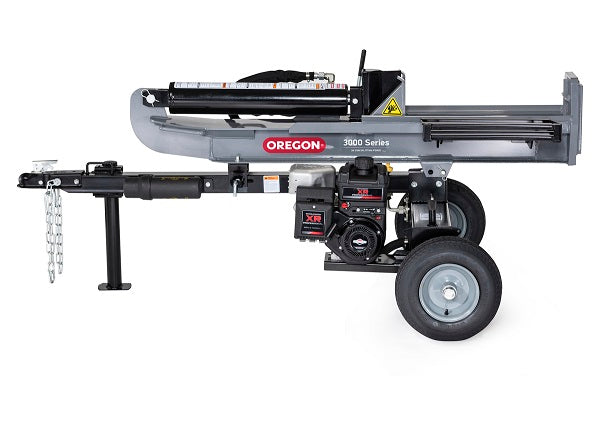

Oregon 30 Ton Log Splitter w/ Briggs & Stratton XR1150 (OR30TBS-1)
Warranty
|
Literature |
The 3000 Series log splitter is a step up in power and performance over the 2500 Series. Delivering up to 30 tons of performance with a 12.9 cycle time. Powered by a professional grade Briggs & Stratton XR1150 engine.
- Oregon 30 Ton Log Splitter with Briggs & Stratton XR1150 Engine
- High-strength Heavy-duty H-beam Design – Robotically welded beam with welded stripper plates and log cradles engineered to handle the high tonnage rates time and time again for years of trouble-free operation.

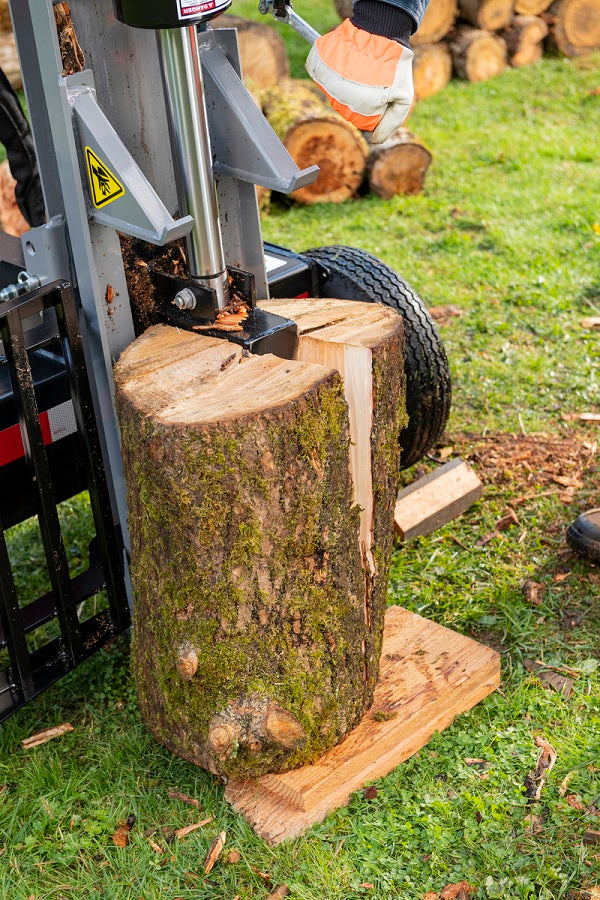

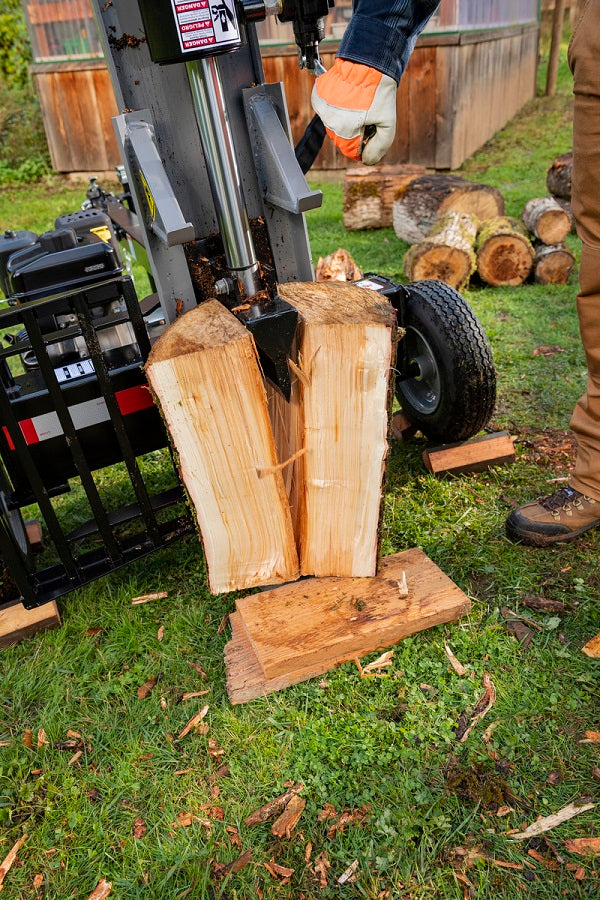

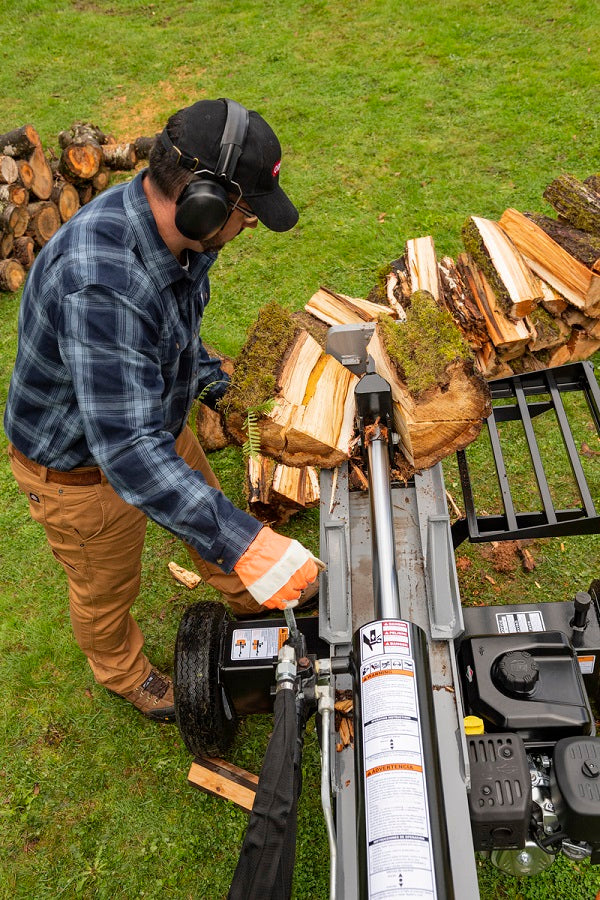

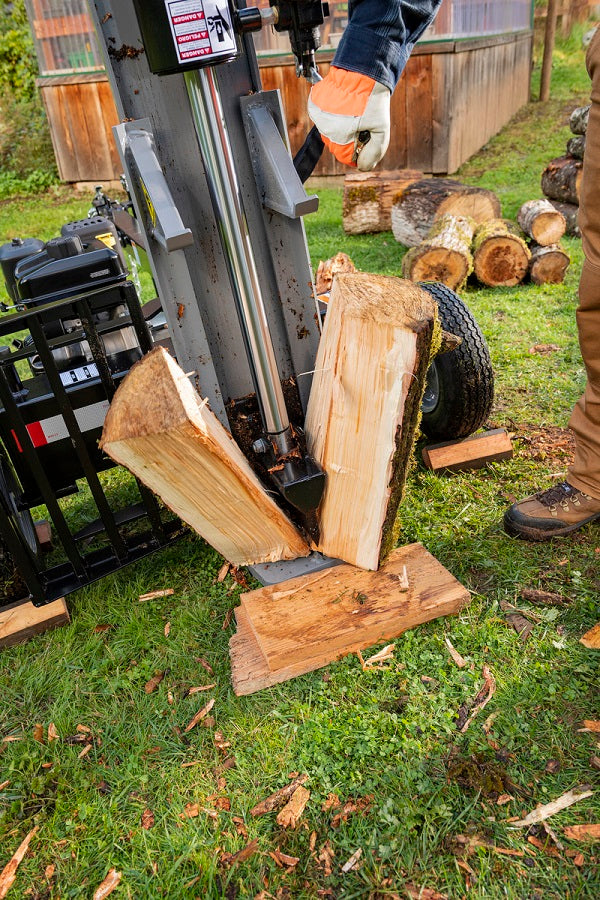

- Horizontal & Vertical Operation – Oregon allows flexibility for splitting logs horizontally for an assembly line approach or vertically for the thick and heavy logs.
- Log Catcher Included – All Oregon log splitters include a log catcher for easy horizontal splitting.
- Optimized Wedge – All Oregon log splitters include an optimized welded wedge with optimal knife edge and separator for efficient splitting.
Product Specifications:
| Power Type | Gas/Hydraulic |
| Engine Brand | Briggs & Stratton |
| Engine Model | XR1150 |
| Start Type | Pull Start |
| Engine Displacement/Size | 250 cc |
| Maximum Splitting Force-Tonnage | 30 ton |
| Cycle Time | 12.9 seconds |
| Horizontal Operation | Yes |
| Vertical Operation | Yes |
| Wedge Type | Tall Wedge |
| Wedge Height | 8" |
| Log Cradle Included | Yes |
| Maximum Log Length | 25.5" |
| Pump | 2 Stage 14 GPM |
| Valve | 3625 |
| Filter | In tank Filter |
| Hydraulic Fluid Capacity | 6 gal |
| Includes Fluids | No |
| Auto Return | Yes |
| Cylinder Size/Dimensions | 4.5" |
| Tire Size | 4.5" x 16" Diameter |
| Maximum Towing Speed | 45 mph |
| Tongue Style | 2" Ball with Safety Chains |
| Workmanship Warranty | 2 Year |
| Hydraulic Warranty | 2 Year |
| Engine Warranty | Manufacturer's Warranty |
| Weight (with Packaging) | 500 lbs |
If you have any questions give us a call during business hours and one of our friendly associates will be happy to assist you. 410-692-5170
