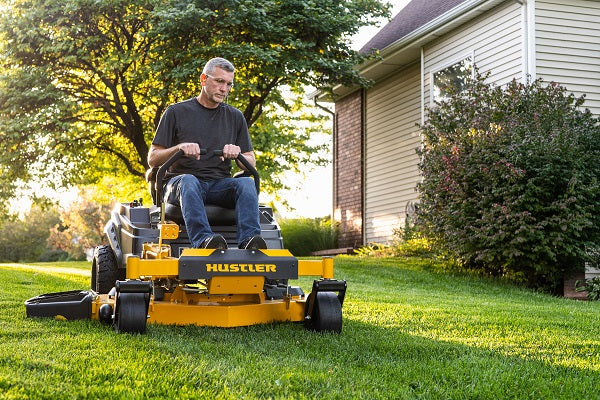

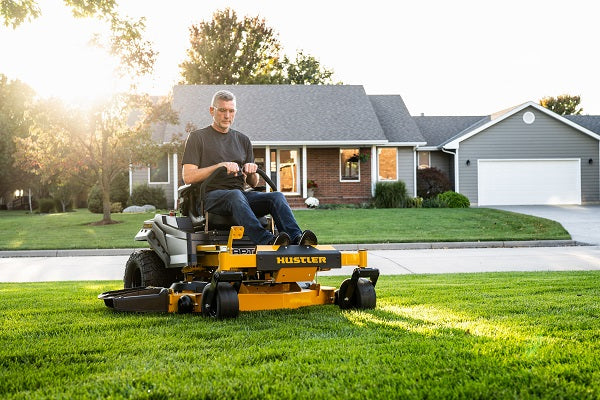

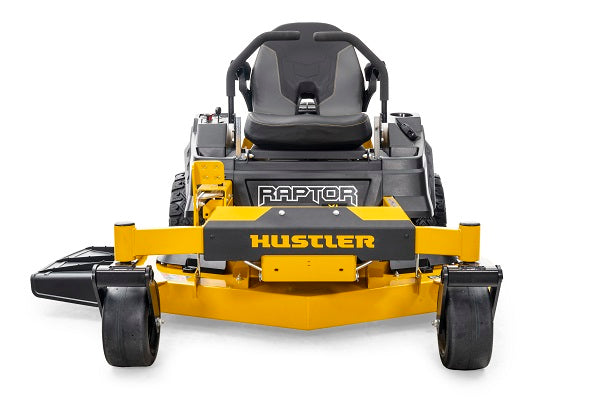

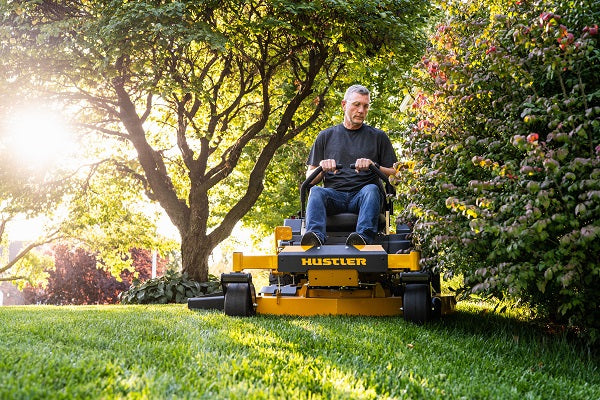

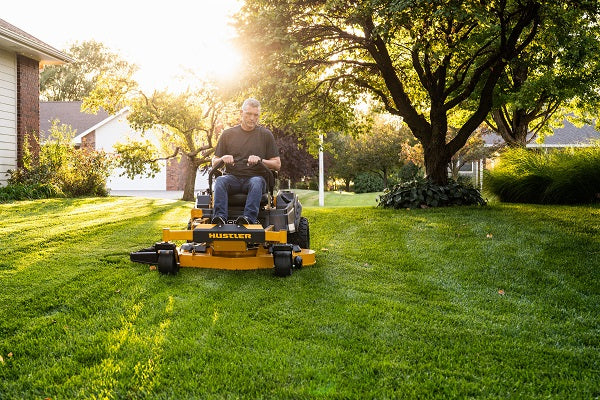

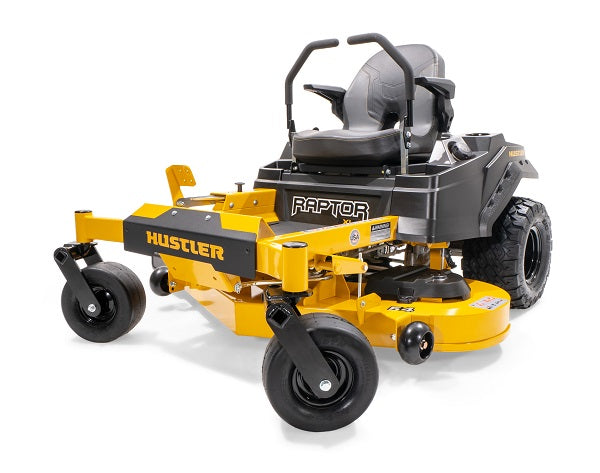

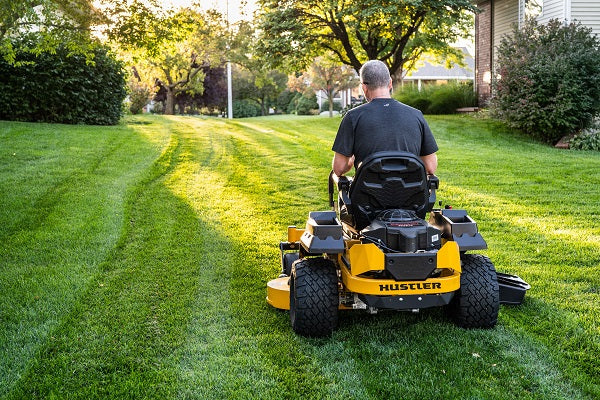

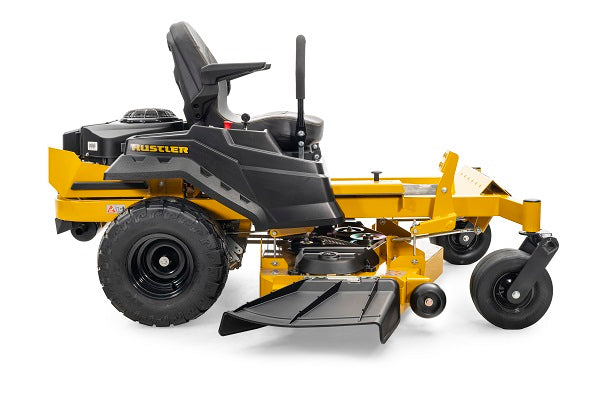

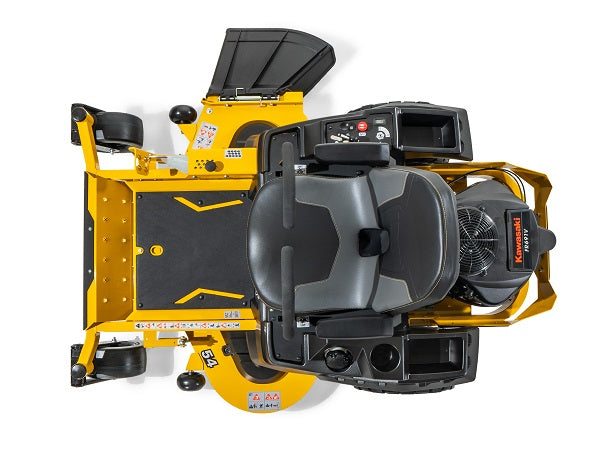

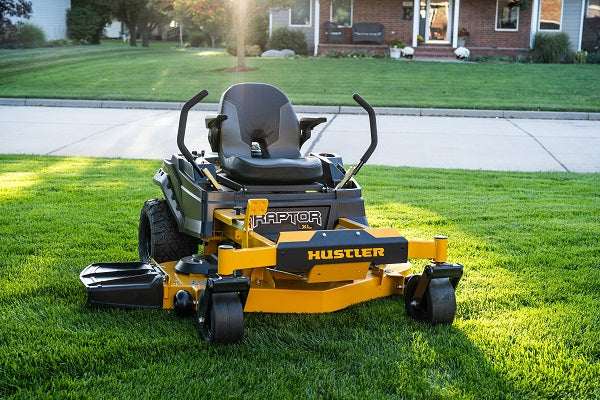

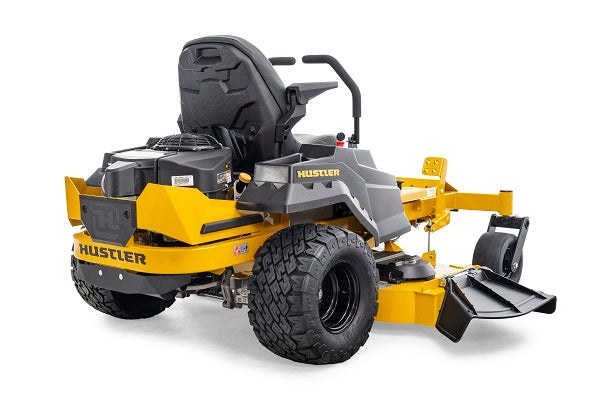

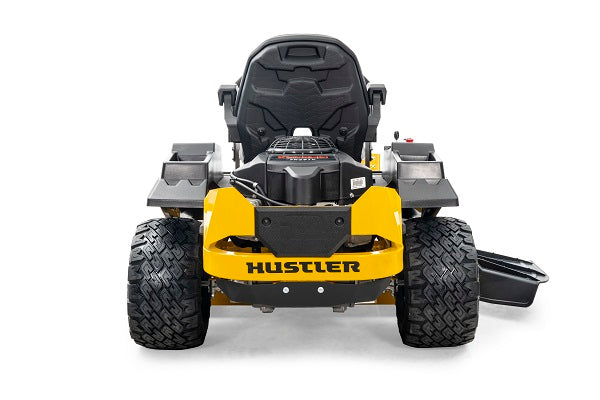

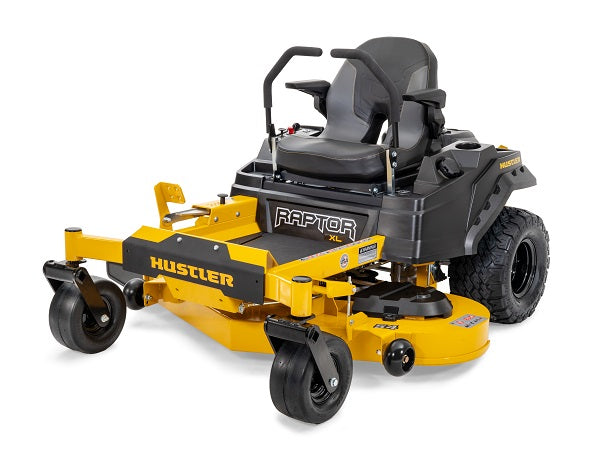

Hustler Raptor XL 54" Residential Zero-Turn Mower w/ Kawasaki FR691 (23HP)

Hustler Turf Equipment

$4,699.00
Save $150

Warranty

3 Year Limited, 300-hour residential
3 Year Limited Engine

Literature

Take Your Raptor Experience to the Next Level

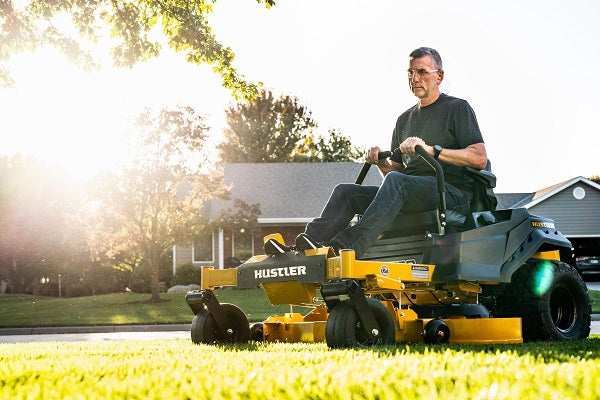

The Hustler Raptor XL 54" zero turn lawn mower features premium upgrades to the Raptor X. The XL provides some added comfort with a more premium seat and flex forks for a smoother ride. Also, there is an additional horsepower option with a 23hp Kawasaki FR Engine. More comfort and more power backed by an industry-leading 3yr / 300hr warranty.

Flex Forks: Standard on the XL, these flexing front forks cushion the ride for a more comfortable mowing experience.
Welded Steel Deck: 11 ga. welded fabricated steel deck adds durability & extends the mower’s life. (compare to other brand’s cheap stamped decks)
Wider Stance: Additional operator platform width provides more room and comfort for the operator
SmoothTrak™ Steering: Precision control to help trim and maneuver easily around obstacles. You will fully understand SmoothTrak steering when you drive ours and then drive theirs.
Premium Seat: Compared to the Raptor X seat, the XL seat features a higher back and added padding with the same armrests and airflow to the back.
Rubber Floor Mat: Adds comfort by reducing vibration on the operator's feet and is standard on all Raptor models.
Premium Residential Frame: Continuous one-piece 1½ inch by 3 inches welded tubular frame not seen on any other residential mower. #1 in Class
Foot-Operated Deck Lift: Easily adjust the deck height between 1.5” - 4.5” with less effort than hand-operated levers found on other brands.
Easy to Service: Flip-up seat pan, removable floor pan, vented pulley covers.

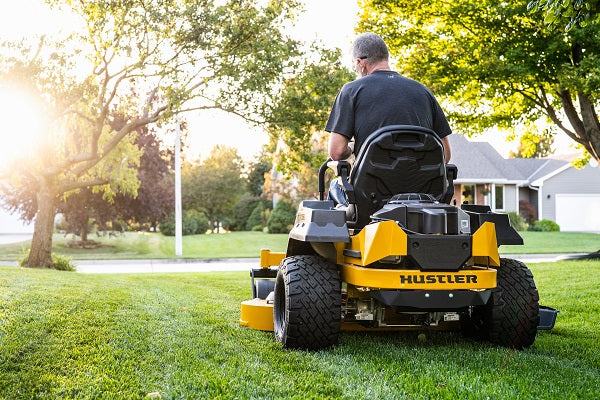

Exclusive BigBite™ rear tires: Hustler worked directly with the tire manufacturer on this design. You will not find them anywhere else.
Premium Power: The V-Twin Kawasaki® engine is the highest-rated residential engine available.

Hustler Turf Accessory Compatibility Chart
Hustler Raptor XL Accessories
2 Bag Catcher	940817
Mulching Kit 54"	126537
USB Kit	127702
Light Kit	127057
Stripe Kit 54"	126828
Hitch Kit	127156
Steering Lever Extension Kit	122760

__________________________________________________________________

Specifications

Engine
Engine Manufacturer	Kawasaki FR691
Engine Horsepower	23
Displacement	726cc
Cooling	Air Cooled
Engine Warranty	3 year
Drive System
Type	Dual Hydrostatic
Transmission	Hydro-Gear ZT-2200
Fuel Capacity	3 gal.
Ground Speed (Fwd)	Up to 7 mph
Parking Brake	Integrated with steering levers
Deck
Cutting Width	54"
Cutting Height	1.5" to 4.5"
Deck Depth	4.5"
Deck Lift	Foot Operated
Number of Blades	3
Blade Length	18.50"
Blade Tip Speed	18,600
Spindles	Aluminum w/ 1" shaft and double lip sealed ball bearings
Deck Engagement	Ogura GT1.5
Deck Material	Fabricated 11 gauge steel
Spindle Mounts	Reinforced 7 gauge steel
Impact Trim Area	1/4" x 1" steel bar
Construction
Frame	1.50" X 3" steel tubing
Front Axle	Fabricated with sealed ball bearings
Front Caster Wheel	Sealed ball bearings
Front Caster Fork	FlexFork®
General
Seat	Premium bolstered high-back seat with armrests and built-in lumbar support
Cup Holder	Yes
Dimensions
Front Tire (Inches)	11 X 6
Drive Tire (Inches)	18 X 10.5-8 BigBite™
Weight (lbs)	594
Height (Inches)	42.6
Length (Inches)	71.7
Width w/ Chute Up (Inches)	58.6
Tire-to-Tire Width (Inches)	46.5
Productivity (Acres Per Hour)	3.05
Warranty
Warranty	3 Year/300-hour residential
Dimensions with Catcher
Catcher Style	2-bag
Powered / Non-powered	Non-powered
Catcher Capacity	5.4 bushel
Mower Length w/ Catcher	91.4
Mower Width w/ Catcher	69.5

If you have any questions about the Hustler Raptor XL 54" mower for sale, give us a call during business hours and one of our friendly associates will be happy to assist you. 410-692-5170
