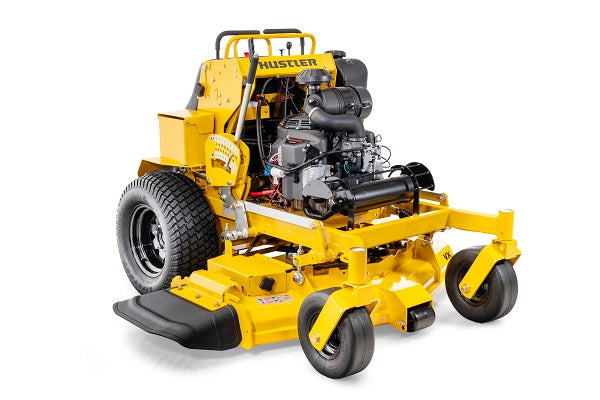

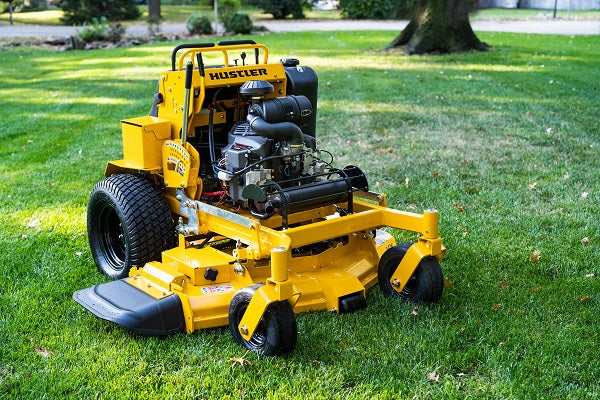

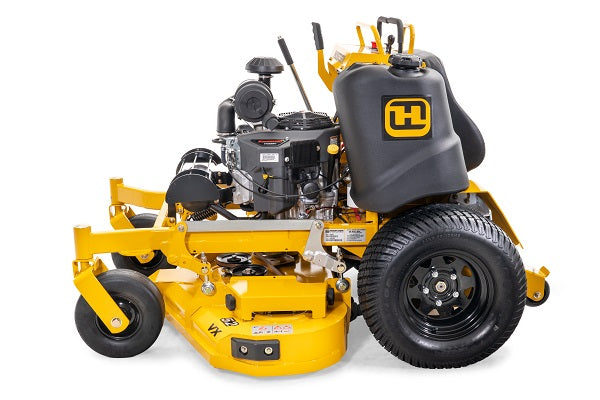

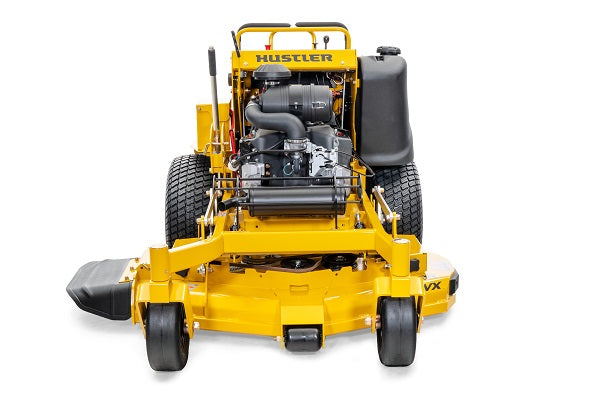

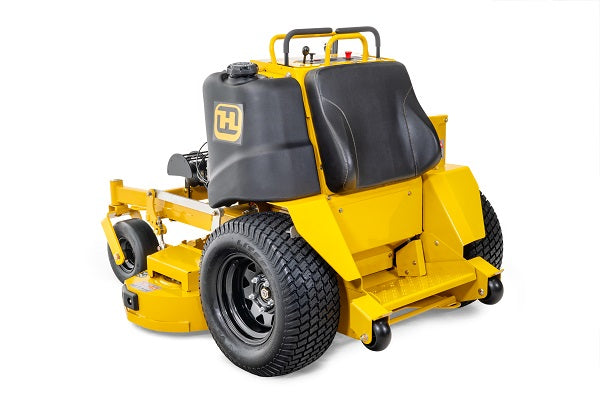

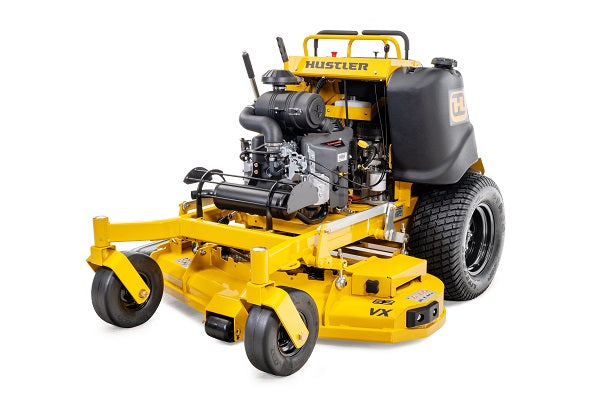

Hustler Super S 36" Commercial Zero-Turn Mower w/ Kawasaki FX600 (19HP)
All Hustler Lawn Mowers |
Warranty
|
Literature |

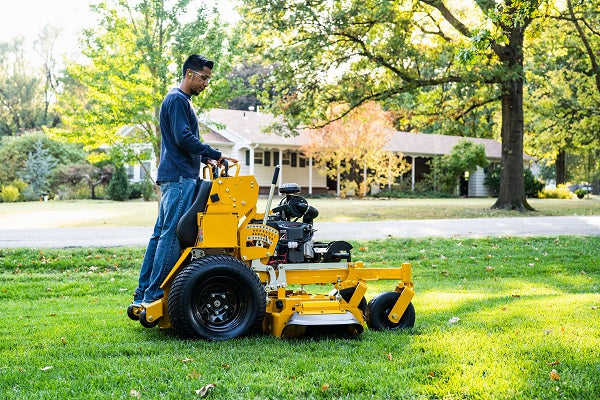

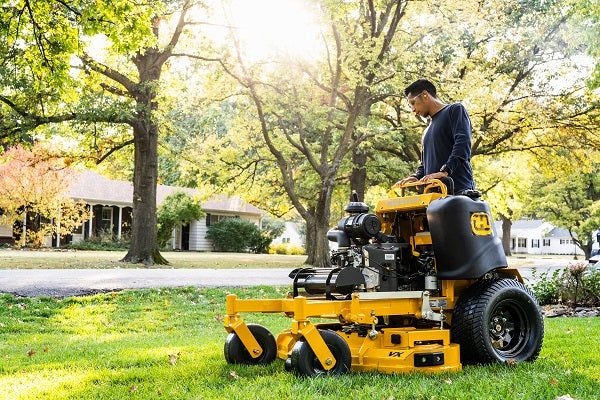

A Stand-On With Exceptional Operator Comfort, Control And Maneuverability
Hustler's Super S® features superior operator comfort and positioning, operator-friendly controls, and a compact stance that makes navigating tight spaces easy.
- Pulley Covers: Toolless removable pulley covers for easy maintenance.
-

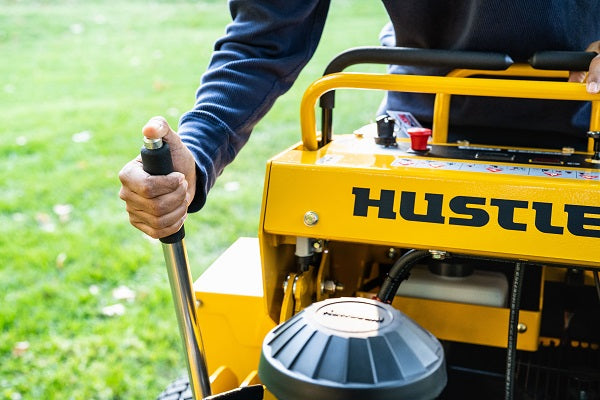

Park Brake: Hand-operated lever to set the parking brake.
-
Cut Height Adjustment: Hand-operated lever and pin to adjust deck/cutting height.
- Wide Operator Platform: For all-day mowing comfort and operator stability.
-

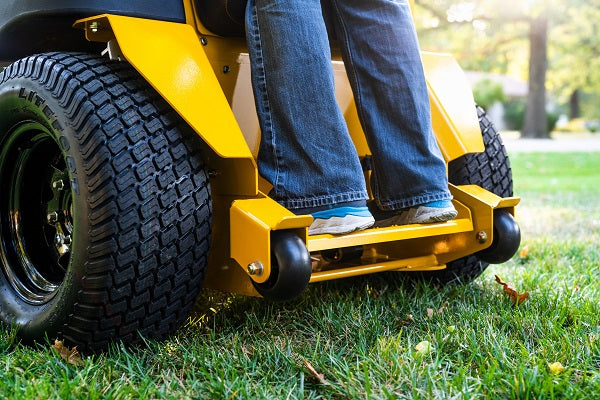

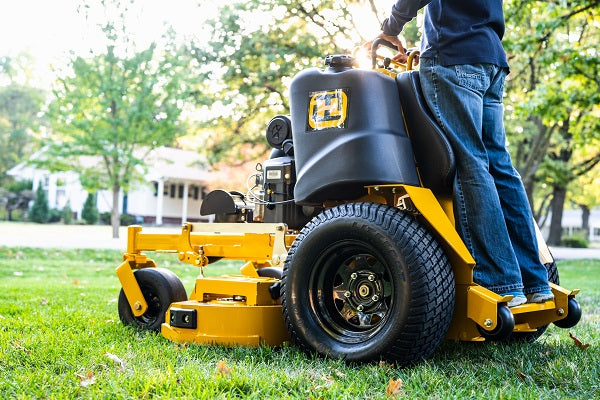

Adjustable Foot Platform: Spring-loaded suspension platform for all-day comfort.
- Service-Friendly Design: Designed to make maintenance and service fast and easy.
- 24" Rear Drive Tires: For superior traction. (48”, 52”, 60”)

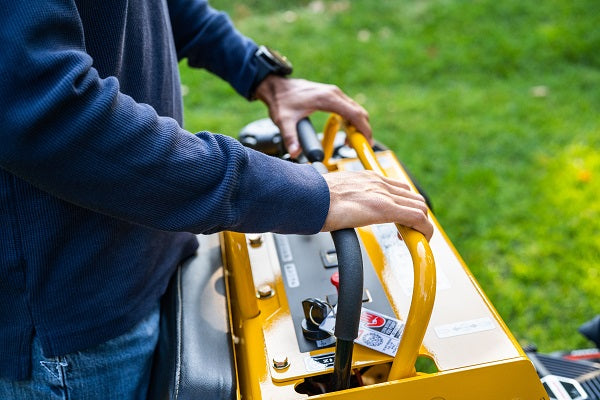

- Adjustable Speed Controls: Allows you to go at your own pace for added control. Also helps with training new operators.

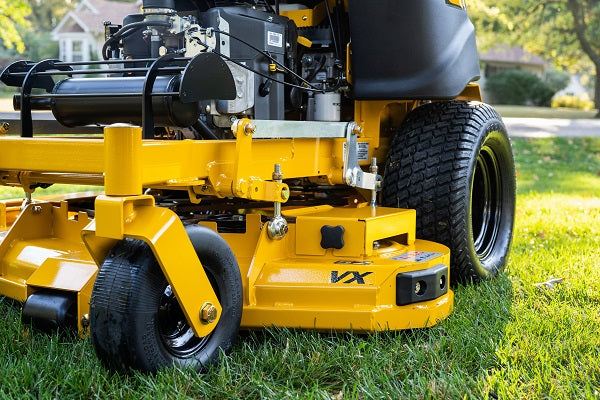

- VX4 Deck: Fabricated 7 ga. steel engineered for an extreme vacuum for enhanced performance and cut quality.
- Compact Design: Small footprint, can go where other machines can't.
Hustler Turf Accessory Compatibility Chart |
|
Hustler Super S Accessories |
|
| Side Mesh Catcher 3.5 Bushel 36" Deck | 939686 |
| Side Steel Catcher 4.4 Bushel | 606045 |
|
Standard Aluminum Side Catcher 3.3 Bushel (Accelerator) |
GCSS |
| Mulching Kit 36" |
122547 |
| Stripe Kit 36" | 126914 |
| Light Kit 36" |
122748 |
| Cup Holder Kit 36" |
122821 |
| Trash Receptacle Kit 36" |
122777 |
__________________________________________________________________
Specifications
Engine |
|
| Engine Manufacturer | Kawasaki FX600 |
| Engine Horsepower | 19 |
| Displacement | 603cc |
| Cooling | Air Cooled |
| Air Cleaner |
Heavy duty canister |
| Engine Warranty | 3 year |
Drive System |
|
| Type | Dual Hydrostatic |
| Transmission | Hydro-Gear 10cc pump with Parker TL wheel motors |
| Fuel Capacity | 6.5 gal. |
| Ground Speed (Fwd) | Up to 8 mph |
| Parking Brake |
Hand-operated drum brakes
|
Deck |
|
| Cutting Width | 36" |
| Cutting Height | 1.5" to 5.5" |
| Deck Depth | 5.5" |
| Deck Lift | Hand Operated |
| Number of Blades | 2 |
| Blade Length | 17.86" |
| Blade Tip Speed | 18,700 |
| Spindles | Ductile cast iron with steel shaft and sealed ball bearings |
| Deck Engagement | Electric PTO Clutch |
| Deck Material |
7 gauge fabricated with 7 gauge wrappers
|
| Spindle Mounts | 7 gauge with 11 gauge doubler |
| Impact Trim Area | 11 gauge formed channel with rolled edge |
Construction |
|
| Frame | 1.5" X 2" steel tubing |
| Engine Plate | 7 gauge with 11 gauge jackshaft doubler |
| Operator Platform | 7 gauge with embossed tread pattern |
| Front Axle | Fabricated with tapered roller bearings |
| Front Caster Wheel |
Tapered wheel bearings and debris cap
|
| Front Caster Fork | Fabricated 3/8" steel |
Dimensions |
|
|
Front Tire (Inches) |
11 x 4-5 |
| Drive Tire (Inches) | 20 x 8-10 |
| Weight (lbs) | 907 |
| Height (Inches) | 47 |
| Length (Inches) | 63.5 |
| Width w/ Chute Up (Inches) | 39 |
| Tire-to-Tire Width (Inches) | 36.3 |
| Productivity (Acres Per Hour) | 2.33 |
Warranty |
|
| Warranty | 5 Year / 1200 Hour (First 2 Years No Hour Limit) |
Dimensions with Catcher |
|
| Catcher Style | Side Catcher |
| Powered / Non-Powered | Non-powered |
| Catcher Capacity | 3.5 bushel |
| Mower Length w/ Catcher | 63.5" |
| Mower Width w/ Catcher | 56" |
If you have any questions about this Hustler Super S 36" stand-on mower, give us a call during business hours and one of our friendly associates will be happy to assist you. 410-692-5170
