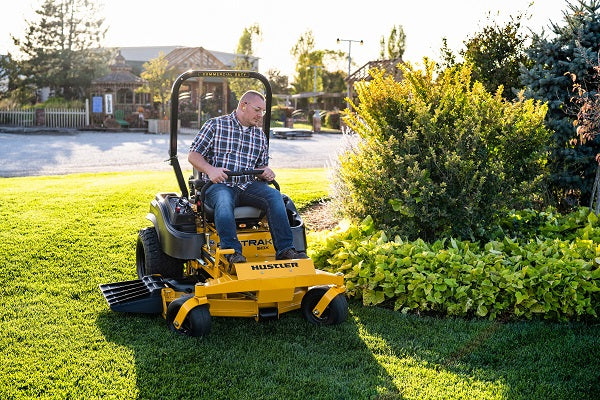

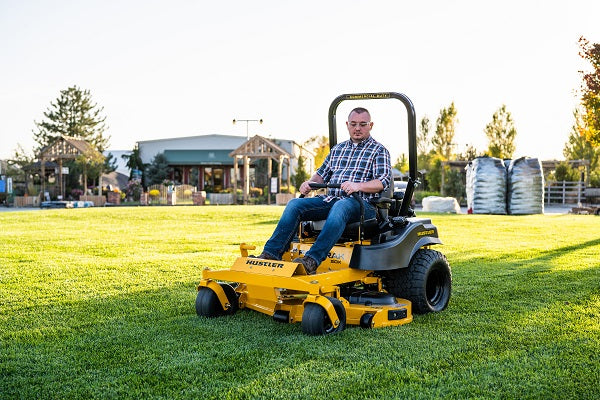

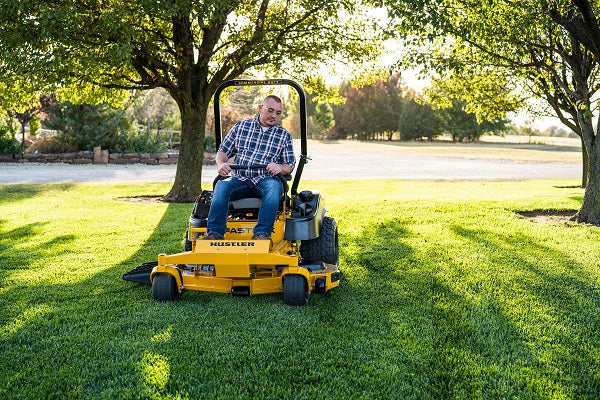

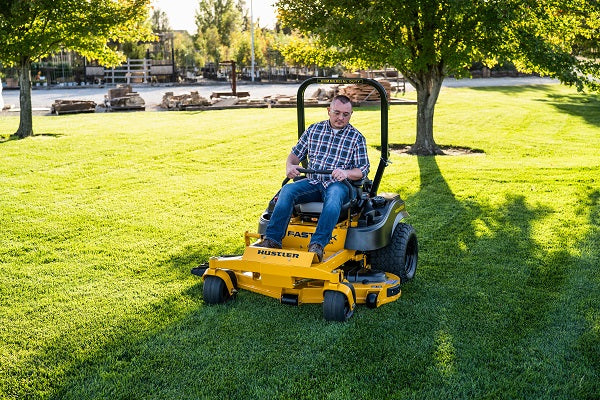

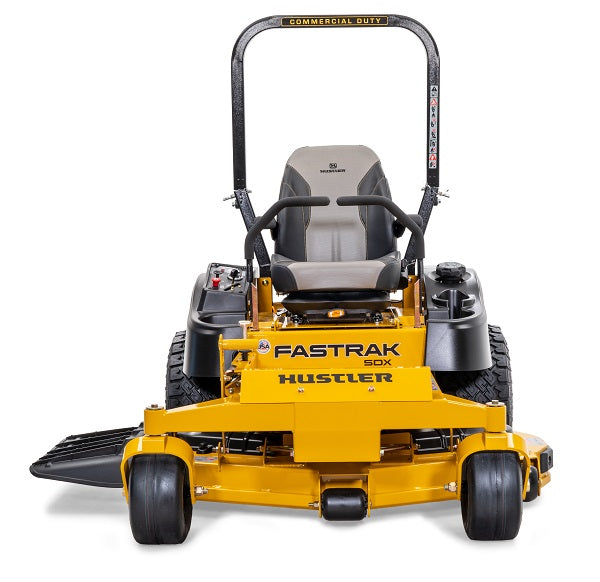

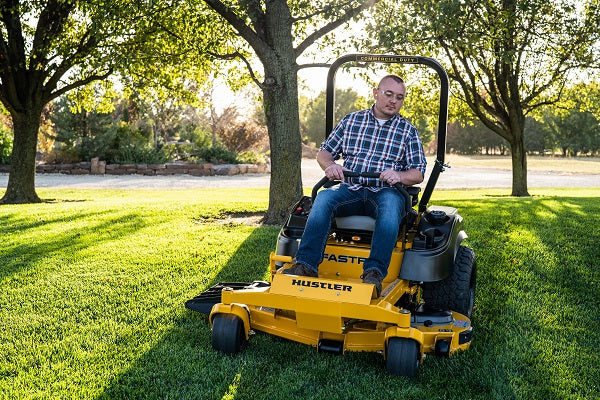

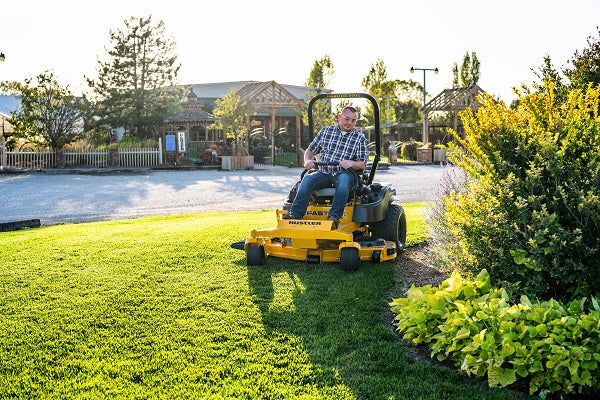

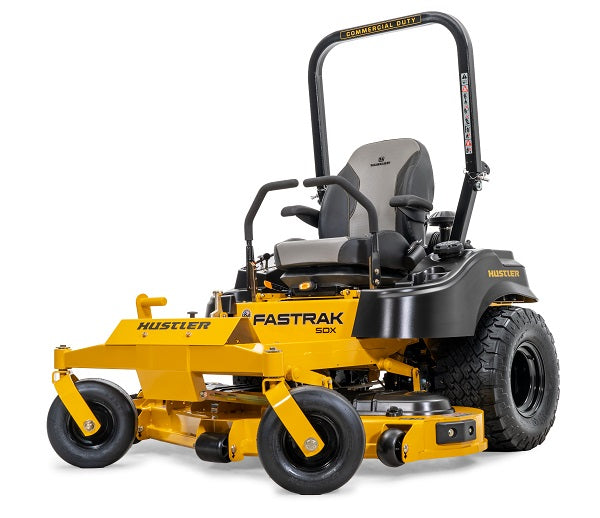

Hustler FasTrak SDX 54" Commercial Zero-Turn Mower w/ Kawasaki FX691 (22HP)
All Hustler Lawn Mowers |
Warranty
|
Literature |
COMMERCIAL-GRADE POWER & PERFORMANCE
The Hustler FasTrak® SDX 54" offers commercial-grade power and performance at an unbeatable value. The heavy-duty and over-engineered construction of the deck, frame and front end makes this zero-turn the most durable in its class.
- Fabricated Frame for Durability: 1.5” x 3.0” steel frame making it one of the toughest and most durable in its class.
- SmoothTrak™ Steering: Precision control to help trim and maneuver easily around obstacles. Other brands have sensitive steering arms causing sudden and jerky movements.
- Easy Serviceability: Flip-up seat pan, removable floor pan and tool less removable pulley covers make maintenance easy and simple.
- Foot Operated Deck Lift: Easily adjust the deck height between 1.5” -4.5” with your foot.
- Welded Steel Deck: Durable 10 ga. welded fabricated steel.
- BigBite™ Tires: Enhanced traction while designed not to tear up turf. Hustler worked directly with the tire manufacturer on this product.
- Full Suspension Seat: Features an extra high back, an industrial tubular frame, and armrests. Additional bolstering for better side-to-side support, and internal suspension to absorb bumps. Engineered cushions add extra support and protection to relieve pressure on your spine and lower back.
- Serviceable Commercial-Grade Transmissions: Built with Hydro-Gear's commercial-grade serviceable transmissions.
- Remote Cannister Air Cleaner: Keep your engine cooler and healthier with the protection a commercial mower needs to operate at peak efficiency.
Hustler Turf Accessory Compatibility Chart |
|
Hustler FasTrak SDX Accessories |
|
2 Bag Powered Catcher (no adapter needed) |
942367 |
Bac-Vac Catcher (no adapter needed) | 942375 |
Side Steel Catcher 3.5 Bushel (no adapter needed) | 606045 |
Side Mesh Catcher 3 Bushel (no adapter needed) | 939678 |
Standard Aluminum Side Catcher 3.3 Bushel (Accelerator) | GCGR34Z |
Jumbo Aluminum Side Catcher 5 Bushel (Accelerator) |
GCGR34ZXL |
Mulching Kit 54" |
121475 |
Flex Forks |
605123 |
Light Kit |
127928 |
High Vacuum Kit 54" |
121479 |
Steering Lever Extension Kit |
122760 |
Stripe Kit | 126828 |
__________________________________________________________________
Specifications
Engine |
|
Engine Manufacturer | Kawasaki FX691 |
Engine Horsepower | 22 |
Displacement | 726cc |
Cooling | Air Cooled |
Engine Warranty | 3 year |
Drive System |
|
Type | Dual Hydrostatic |
Transmission | Hydro-Gear ZT-3400™ |
Fuel Capacity | 8.5 gal. |
Ground Speed (Fwd) | Up to 10 mph |
Parking Brake |
Integrated with steering levers
|
Deck |
|
Cutting Width | 54" |
Cutting Height | 1.5" to 4.5" |
Deck Depth | 5" |
Deck Lift | Foot Operated |
Number of Blades | 3 |
Blade Length | 18.50" |
Blade Tip Speed | 18,900 |
Spindles | Aluminum with 1" shaft and sealed ball bearings |
Deck Engagement | Electric PTO Clutch |
Deck Material |
Fabricated 10 gauge
|
Spindle Mounts | Reinforced 11 gauge |
Impact Trim Area | 11 gauge formed channel with rolled edge |
Construction |
|
Frame | 1.5" X 3" steel tubing |
Front Axle | Fabricated with sealed ball bearings |
Front Caster Wheel |
Tapered roller bearings - grease-able
|
Front Caster Fork | Fabricated 3/8" steel |
General |
|
Seat | Extra High-Back Suspension Seat |
Cup Holder | Yes |
Dimensions |
|
Front Tire (Inches) |
13 x 6.5-6 |
Drive Tire (Inches) | 23 x 11-10 BigBite™ |
Weight (lbs) | 925 |
Height (Inches) | 48.9, 68.7 w/ rops up |
Length (Inches) | 76.7 |
Width w/ Chute Up (Inches) | 55 |
Tire-to-Tire Width (Inches) | 51.5 |
Productivity (Acres Per Hour) | 4.36 |
Warranty |
|
Warranty | 4 years or 1000 hours |
Dimensions with Catcher |
|
Catcher Style | 2-bag |
Powered / Non-powered | Powered |
Catcher Capacity | 7.2 bushel |
Mower Length w/ Catcher | 98" |
Mower Width w/ Catcher | 63" |
Catcher Style 2 | Bac-Vac |
Powered / Non-powered | Powered |
Catcher Capacity | 8 bushel |
Mower Length w/ Catcher | 88.75" |
Mower Width w/ Catcher | 63" |
If you have any questions about the Hustler FasTrak SDX 54-inch commercial zero-turn mower, give us a call during business hours and one of our friendly associates will be happy to assist you. 410-692-5170
