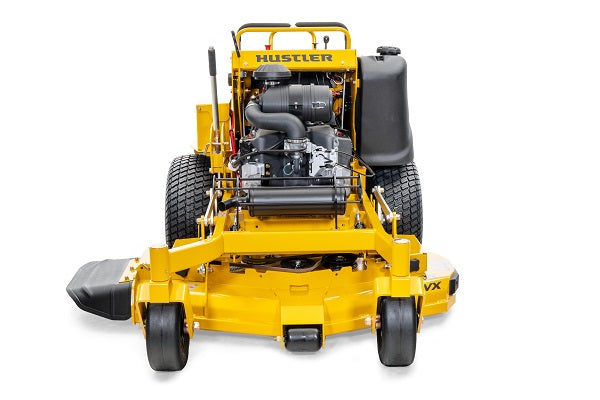

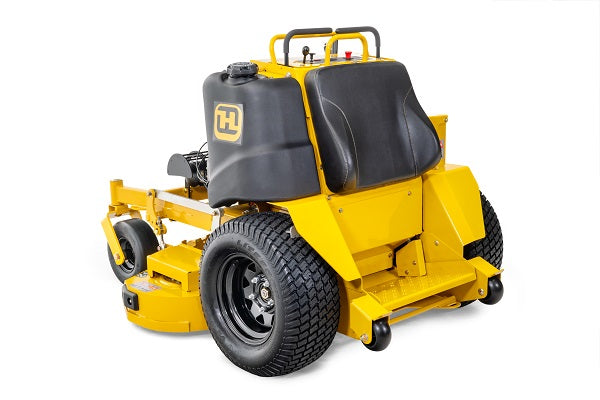

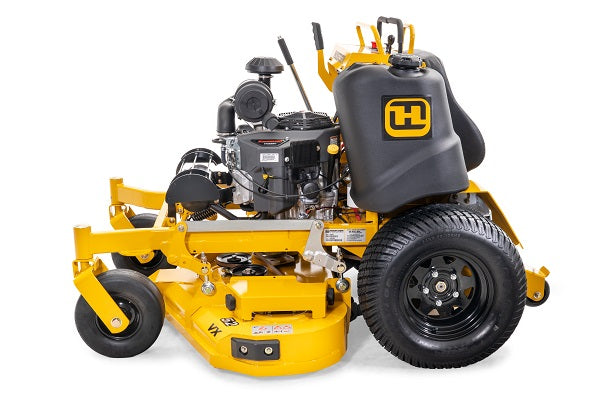

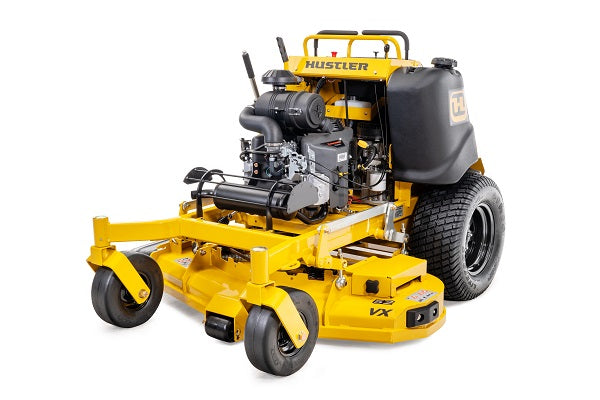

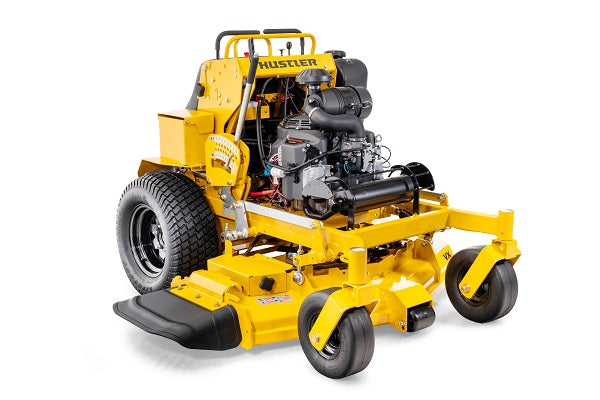

Hustler Super S 48" Commercial Zero-Turn Mower w/ Kawasaki FX691 (22HP)

Hustler Turf Equipment

$10,699.00
Save $1,514

All Hustler Lawn Mowers

Warranty

5 Year / 1200 Hour (First 2 Years No Hour Limit)
3 Year Limited Engine

Literature

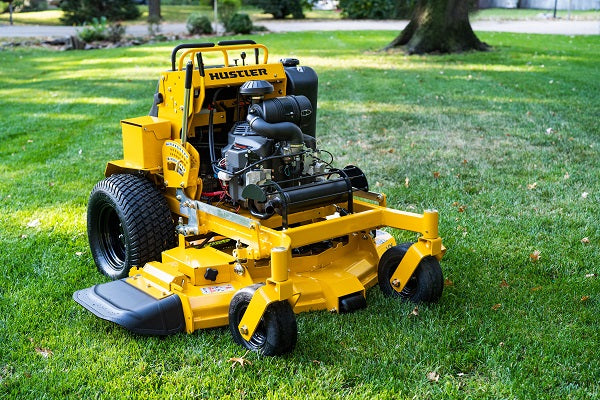

A Stand-On With Exceptional Operator Comfort, Control, And Maneuverability

Hustler's Super S® features superior operator comfort and positioning, operator-friendly controls, and a compact stance that makes navigating tight spaces easy.

Pulley Covers: Toolless removable pulley covers for easy maintenance.

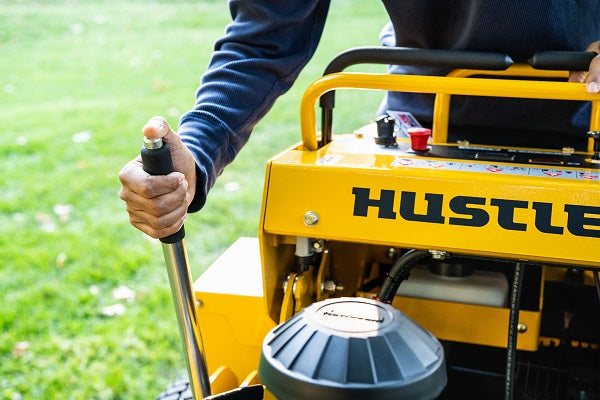

Park Brake: Hand-operated lever to set the parking brake.
Cut Height Adjustment: Hand-operated lever and pin to adjust deck/cutting height.
Wide Operator Platform: For all-day mowing comfort and operator stability.

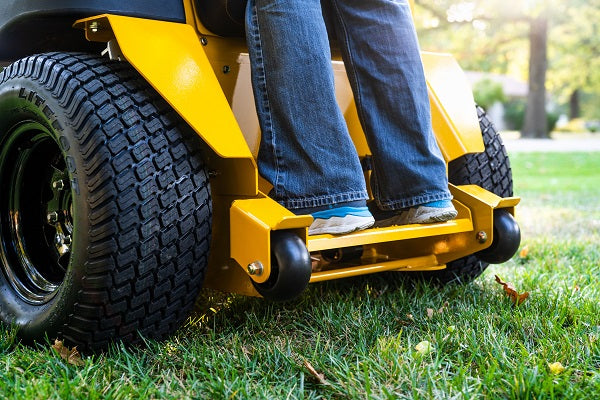

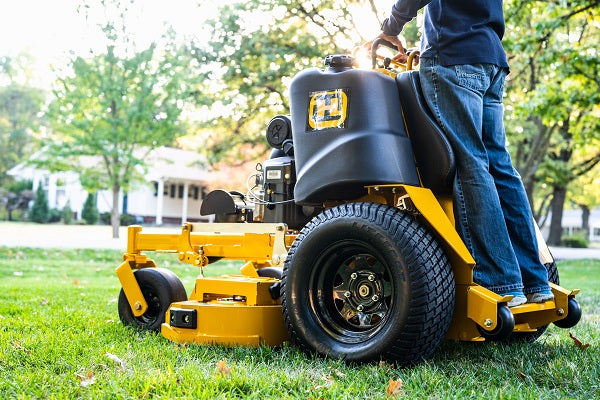

Adjustable Foot Platform: Spring-loaded suspension platform for all-day comfort.
Service-Friendly Design: Designed to make maintenance and service fast and easy.
24" Rear Drive Tires: For superior traction. (48”, 52”, 60”)

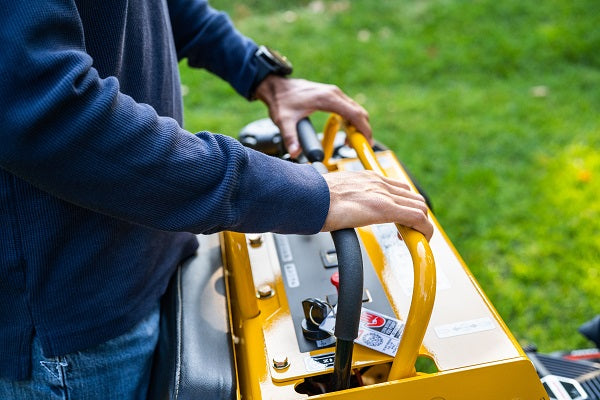

Adjustable Speed Controls: Allows you to go at your own pace for added control. Also helps with training new operators.

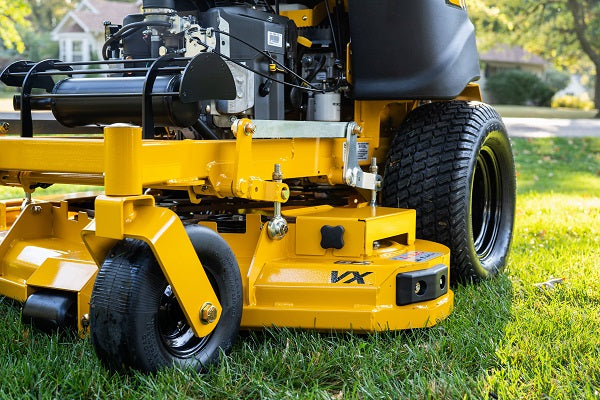

VX4 Deck: Fabricated 7 ga. steel engineered for an extreme vacuum for enhanced performance and cut quality.
Compact Design: Small footprint, can go where other machines can't.

Hustler Turf Accessory Compatibility Chart
Hustler Super S Accessories
Side Mesh Catcher 3.5 Bushel	943654
Side Steel Catcher 4.4 Bushel	606045
Standard Aluminum Side Catcher 3.3 Bushel (Accelerator)	GCSS
Jumbo Aluminum Side Catcher 5 Bushel (Accelerator)	GCSSXL
Mulching Kit 48"	126527
Stripe Kit 48"/52"/60"	126915
Light Kit 48"/52"/60"	128646
Trash Receptacle Kit 48"/52"/60"	127350

__________________________________________________________________

Specifications

Engine
Engine Manufacturer	Kawasaki FX691
Engine Horsepower	22
Displacement	726cc
Cooling	Air Cooled
Air Cleaner	Heavy duty canister
Engine Warranty	3 year
Drive System
Type	Dual Hydrostatic
Transmission	Hydro-Gear 12cc pump with Parker TL wheel motors
Fuel Capacity	7.3 gal.
Ground Speed (Fwd)	Up to 9 mph
Parking Brake	Hand-operated drum brakes
Deck
Cutting Width	48"
Cutting Height	1.5" to 5.5"
Deck Depth	5.5"
Deck Lift	Hand Operated
Number of Blades	3
Blade Length	16.50"
Blade Tip Speed	18,500
Spindles	Ductile cast iron with steel shaft and sealed ball bearings
Deck Engagement	Electric PTO Clutch
Deck Material	7 gauge fabricated with 7 gauge wrappers
Spindle Mounts	7 gauge with 7 gauge doubler
Impact Trim Area	11 gauge formed channel with rolled edge
Construction
Frame	1.5" X 3" steel tubing
Engine Plate	7 gauge with 11 gauge jackshaft doubler
Operator Platform	7 gauge with embossed tread pattern
Front Axle	Fabricated with tapered roller bearings
Front Caster Wheel	Tapered wheel bearings and debris cap
Front Caster Fork	Fabricated 3/8" steel
Dimensions
Front Tire (Inches)	13 x 5-6 Run Flats
Drive Tire (Inches)	24 x 9.5-12
Weight (lbs)	1144
Height (Inches)	47
Length (Inches)	68
Width w/ Chute Up (Inches)	49.3
Tire-to-Tire Width (Inches)	45.8
Productivity (Acres Per Hour)	3.49
Warranty
Warranty	5 Year / 1200 Hour (First 2 Years No Hour Limit)
Dimensions with Catcher
Catcher Style	Side Catcher
Powered / Non-Powered	Non-powered
Catcher Capacity	3.5 bushel
Mower Length w/ Catcher	64"
Mower Width w/ Catcher	68"

If you have any questions about this Hustler Super S 48” stand-on mower, give us a call during business hours and one of our friendly associates will be happy to assist you. 410-692-5170
